Redfield Reveal 5-25x56 First Focal Plane Scope
Shop RedfieldDouble tap to zoom
Redfield Reveal 5-25x56 First Focal Plane Scope
$499.99
$474.99$474.99 with Academy Credit Card
Your price after 5% discount when using your Academy Credit Card. Apply Now
Quantity
STYLE IT WITH
ABOUT THIS PRODUCT
SKU: 147989589
ITEM: 178383
Delivering at a distance and loaded with features, the Redfield Reveal 5-25x56 First Focal Plane Scope supplies the magnification, consistency, and clarity to fit the needs of the long-range shooters and hunters alike. The 34mm one-piece scope tube provides a larger turret adjustment range, a key component at extended ranges as bullet drop and wind become a factor.
Features and Benefits
- 5:1 zoom ratio delivers bright and crisp images across the zoom range
- Large field of view allows for quick target acquisition
- Glass-etched MOA reticle offers shooters highly functional, intuitive and detailed hold points
- Fully multicoated optics reduce glare and increase light transmission for bright and clear images
- Long eye relief allows for greater flexibility in head positioning
- Waterproof, fog proof and shockproof construction for all-weather reliability and durability

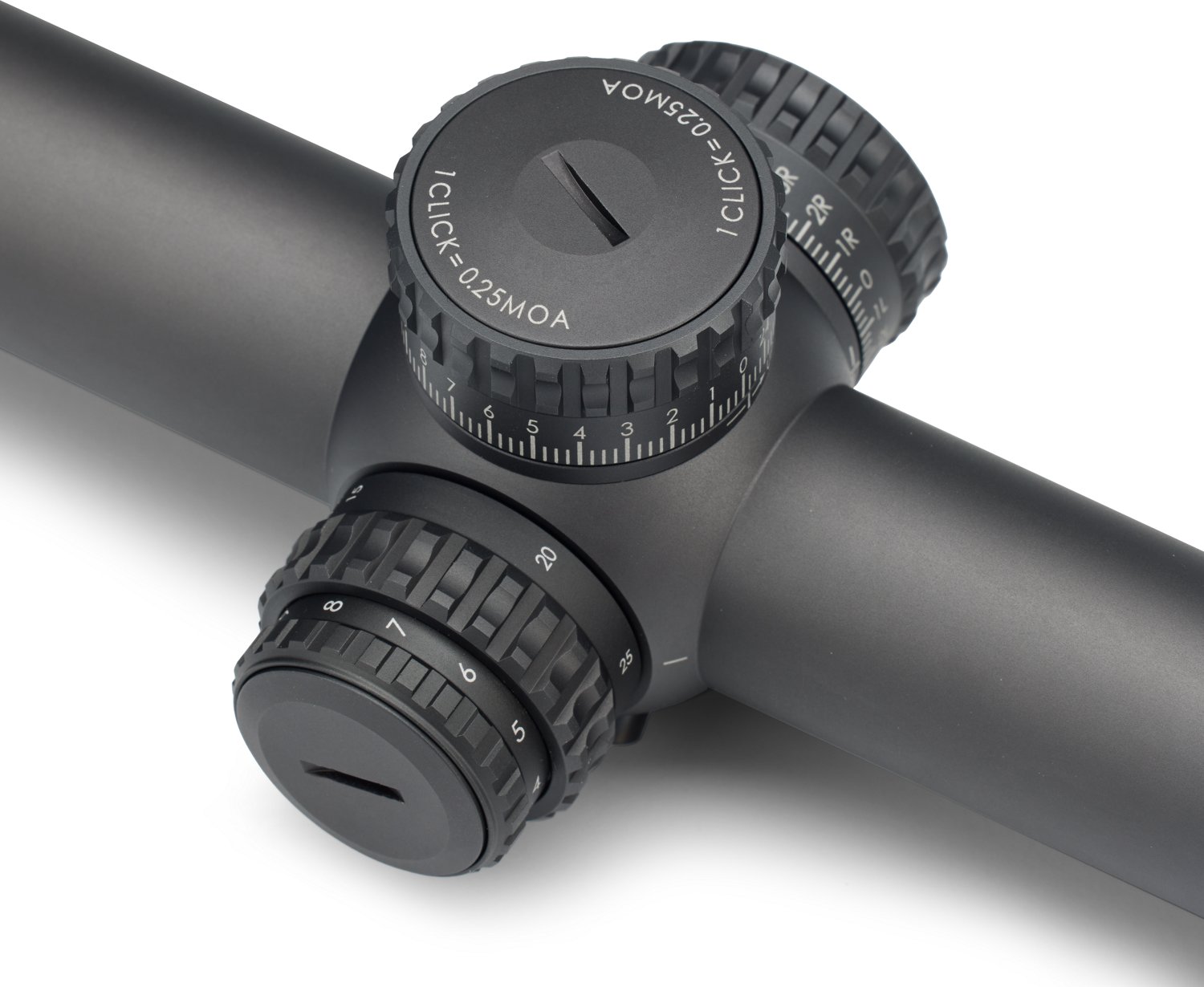

- Locking windage turret with zero stop
- Custom-designed illuminated reticle
- Adjustable parallax 15 yards to infinity
- 1/4 MOA adjustment for precision
- Illumination dial integrated into the side focus for easy access and streamlined performance
- Side focus/parallax adjustment is easy to use
- Motion Sensor technology extends the 200 hour battery run time
- First Focal Plane allows for use of the ballistic reticle across the entire magnification range, instead of just the maximum magnification as is the case with Second Focal Plane scopes
- Tube diameter: 34MM
Specifications
- Manufacturer warranty - parts: Lifetime limited
- Night vision: No
- Mounting length (in.): 6.8
- Field of view (ft.): 241 - 48
- Focus type: Center
- Activity: Hunting
- Range (yards): 15 - 1,000
- Product width (in.): 3.6
- Product height (in.): 2.52
- Water resistance: Waterproof
- Close focus (ft.): 15
- Tube diameter (in.): 1.339
- Parallax setting (yards): 100
- Product Type: Fixed Mount
- Eye relief (in.): 3.74 - 3.62
- Assembly Required: Yes
- Fog proof: Yes
- Manufacturer warranty - labor: Lifetime limited
- Product length (in.): 14.8
- Reticle: 5 MOA
- Exit pupil (mm): 11.2 - 2.24
- Manufacturer warranty - general: Lifetime limited
- Objective lens diameter (mm): 56
What's in the Box
- Redfield Reveal 5-25x56 First Focal Plane Scope
- CR2032 battery
- Rubber lens cover
- Magnetic flip lid color box
- Bubble level
- Sun shade
- Turret tool
- Removable throw lever
- Lens cloth
- Hex key
