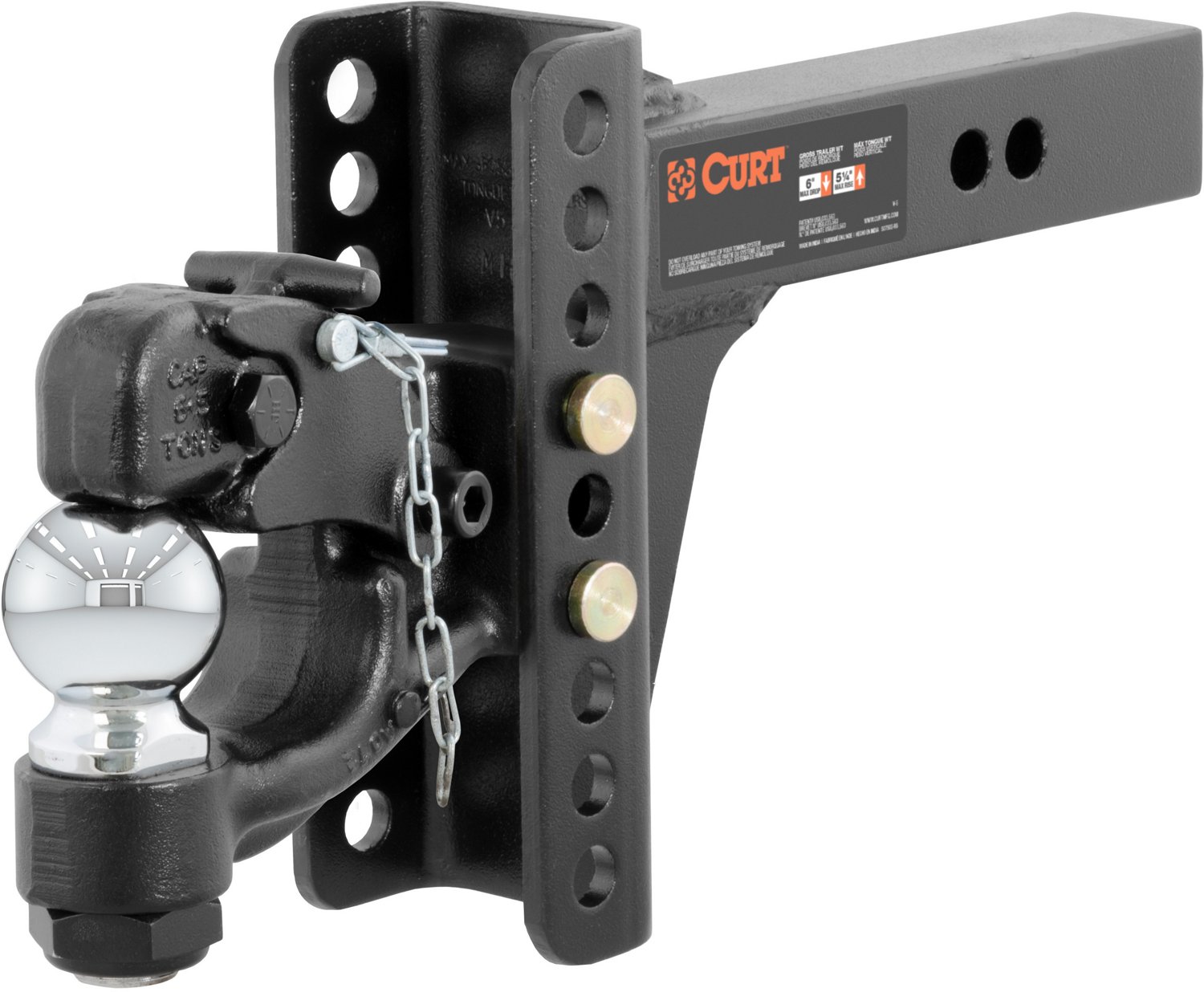

CURT 13,000 lb Adjustable Channel Mount with 2-5/16 in Ball and Pintle

$299.24 with Academy Credit Card
Your price after 5% discount when using your Academy Credit Card. Apply Now
Quantity is now 1
This item may ship from a different location therefore only eligible for ground shipping. Additionally, this item is not eligible for APO/FPO delivery.



SKU:  129179902
ITEM:  45907

With a versatile design, the CURT 13,000 lb Adjustable Channel Mount with 2-5/16 in Ball and Pintle is ideal for livestock haulers, large flatbed trailers, travel trailers and more. The mount is made from high-strength steel and can withstand the harsh elements thanks to its powder-coat finish. Not only is the mount adjustable, but it's also made to ensure stable, smooth and quiet towing on the road. It comes with pins and clips, but you can replace them with a hitch lock set (sold separately) if additional security is required.

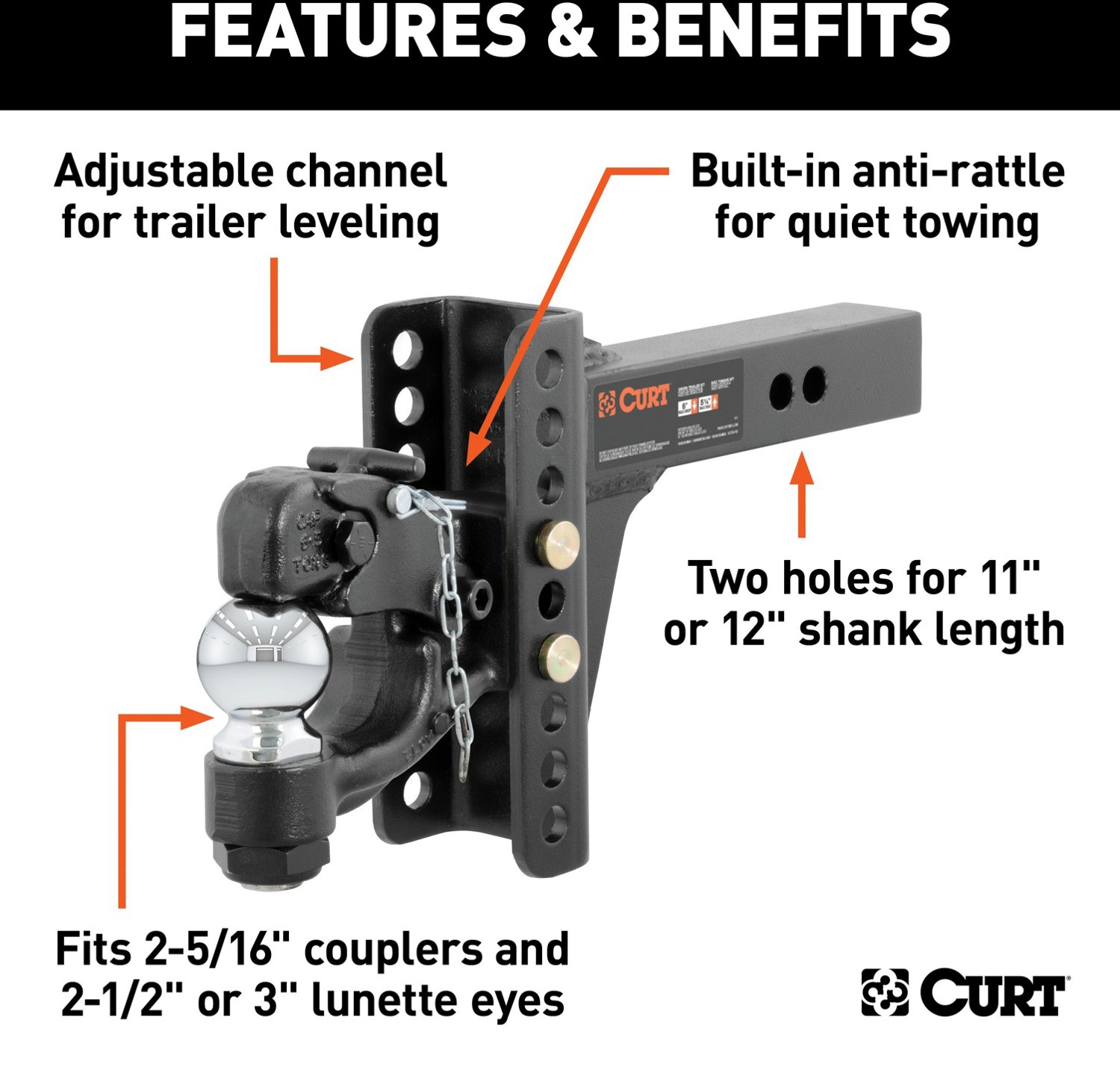

Features and Benefits

  • Designed for mounting onto trailer hitches with a 2-inch x 2-inch receiver tube opening

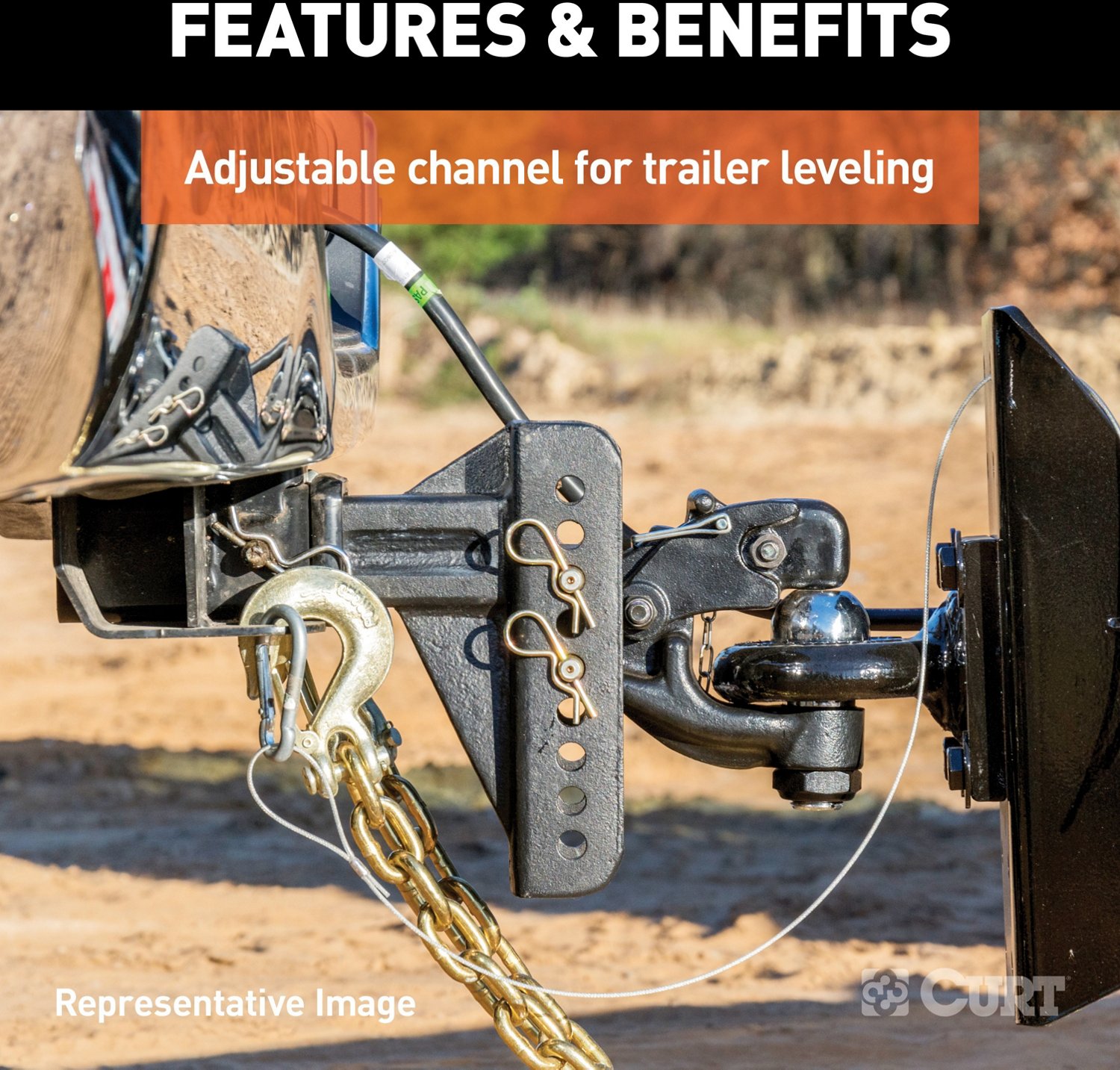

  • Adjustable to enable precise trailer leveling; holes are spaced 1-inch apart

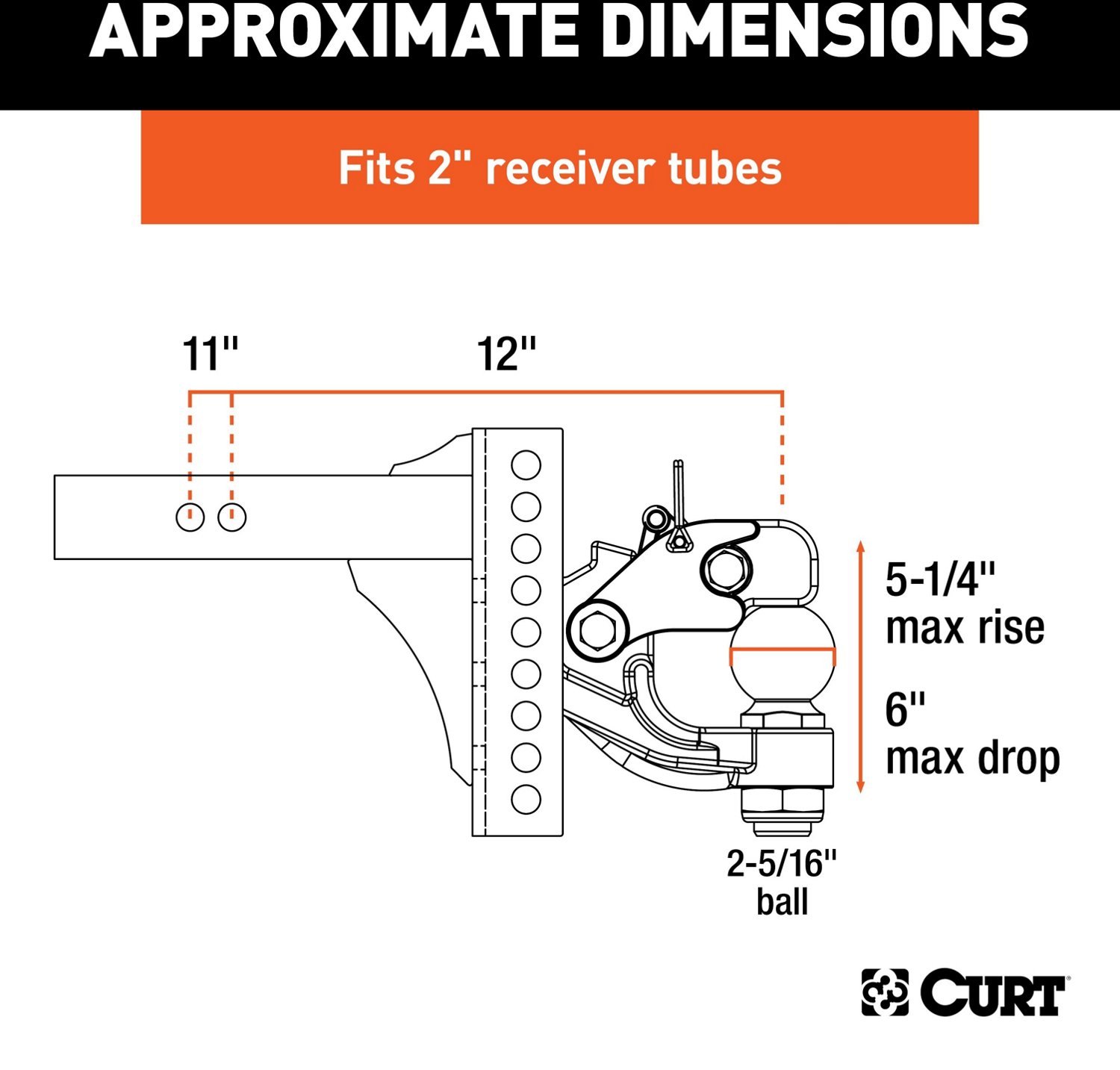

  • Flip the shank for a max rise of 5-1/4 inches and drop of 6 inches

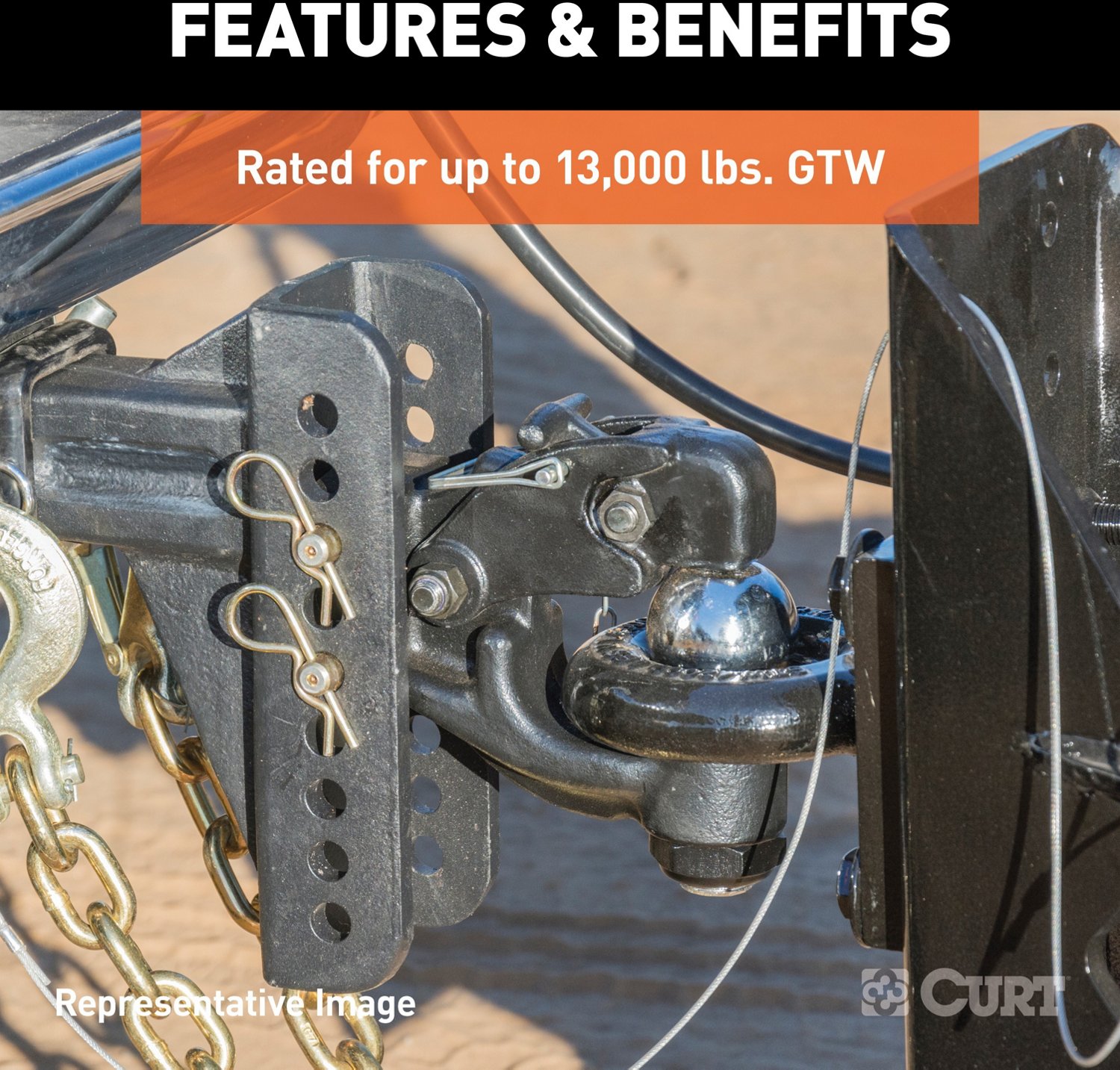

  • Rated for a gross trailer capacity of up to 13,000 pounds
  • Two hitch pin holes provide shank lengths of 11 inches or 12 inches to give you extra clearance over obstacles like a rear bumper or spare tire

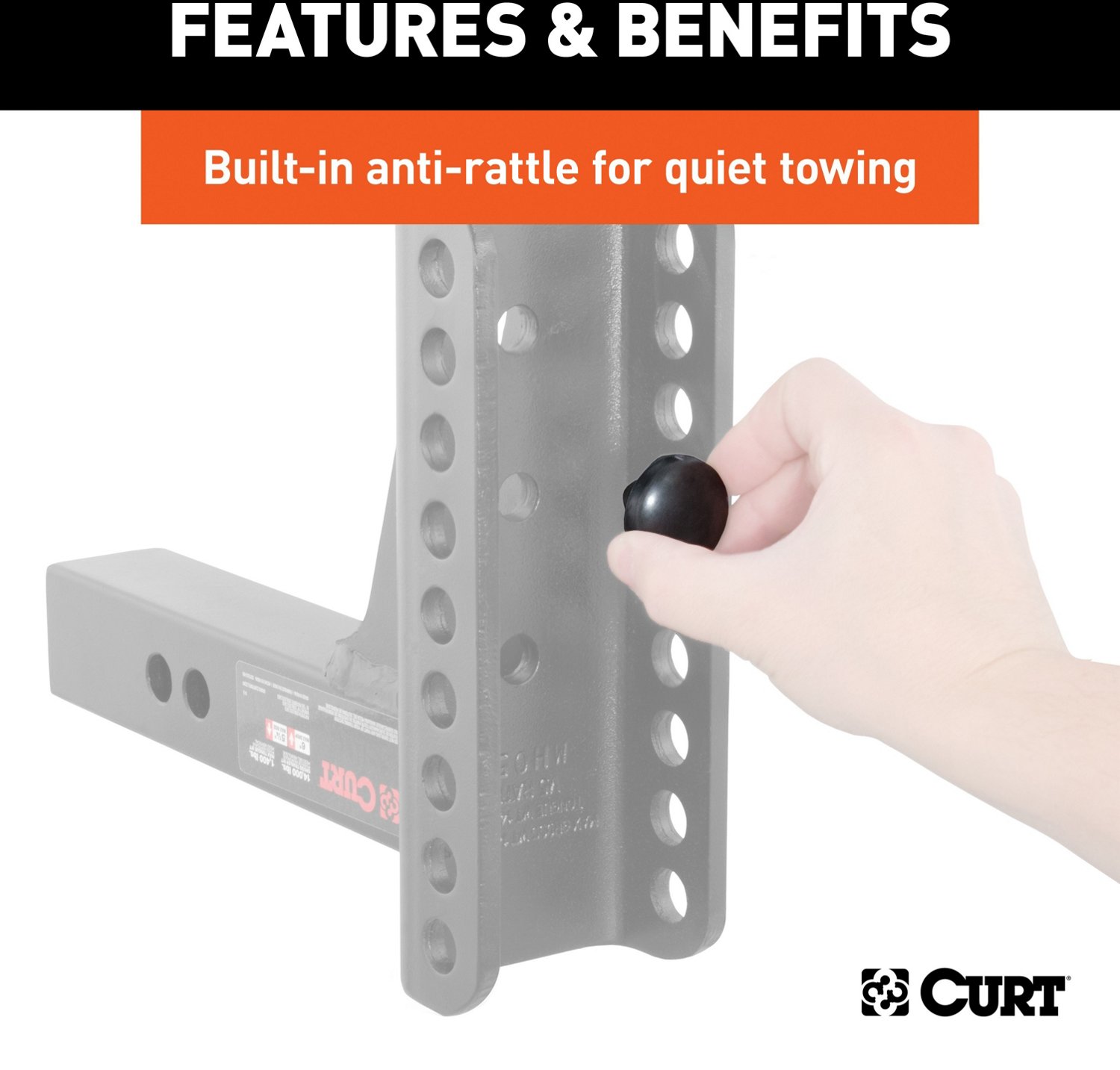

  • Built-in anti-rattle mechanism for smooth, quiet towing
  • Made from forged steel with a highly durable carbide powder-coat finish that provides long-lasting strength

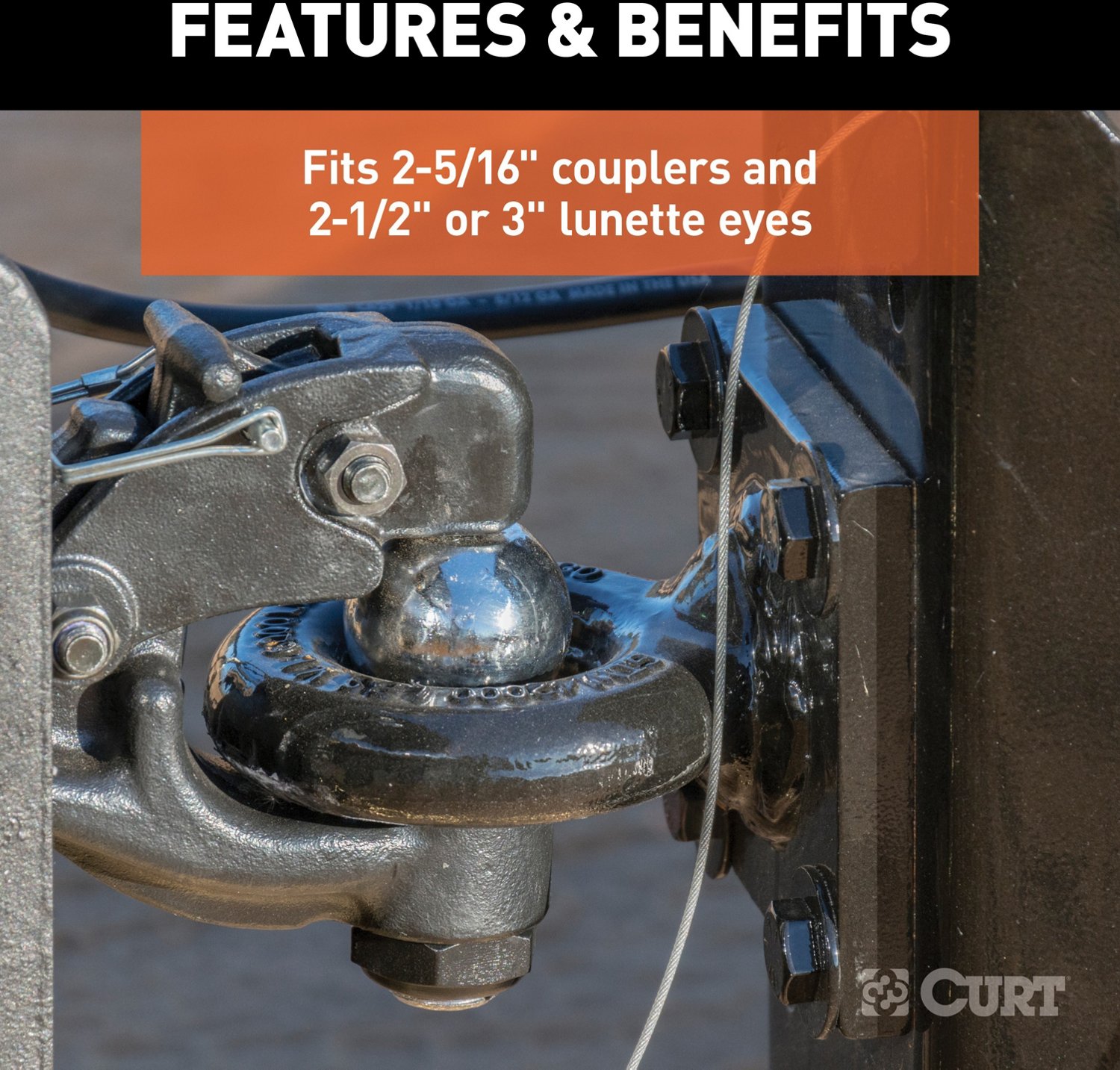

  • Works with 2-5/16-inch couplers or lunette eyes with a 2-1/2-inch or 3-inch inside diameter
  • Equipped with a spring-loaded locking arm for secure coupling
  • Limited lifetime warranty
  • Patent# US8,033,563

What's in the Box

  • #45920 ball and pintle
  • #45910 adjustable shank
  • Pins and clips
