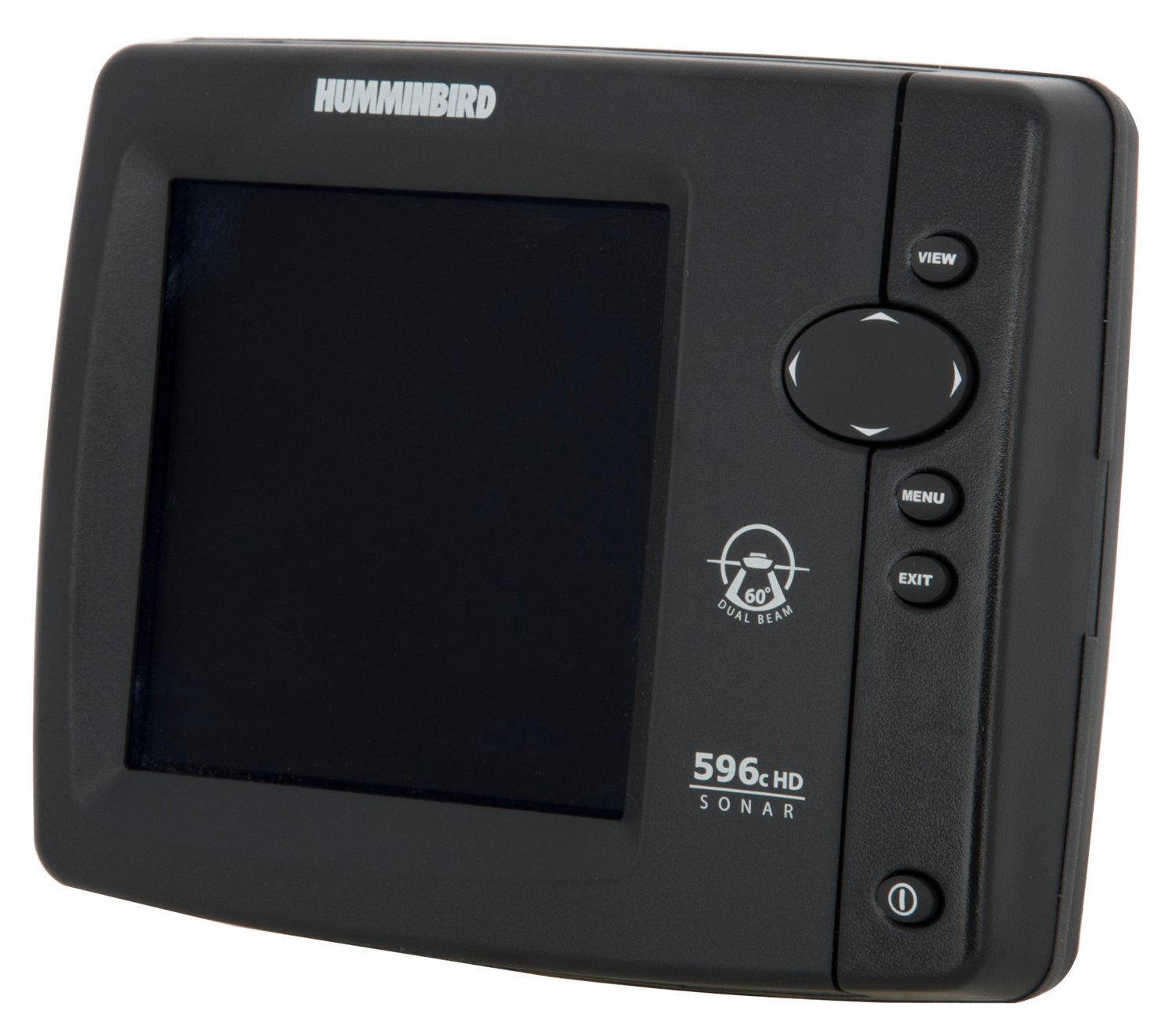

Humminbird 596c HD Fishfinder

Take the Humminbird 596c HD Fishfinder along on your next fishing trip. Designed with DualBeam PLUS™ sonar, selective fish ID and a XNT 9 20 T transducer, the fishfinder allows you to see up to 1,200 ft. below the surface to find the big one you've been waiting for. Waterproof construction provides protection from the elements, while the 256-color, 5" TFT LCD with 640 x 640 pixel resolution offers a clear picture, split-screen display, backlight and selectable display colors. Temperature display.

Features and Benefits

• 256-color, 5" TFT LCD with 640 x 640 pixel resolution for clarity
• Split-screen display with selectable display colors and a backlight shows sonar returns from both wide and narrow beams on the left and right side of the screen
• DualBeam PLUS™ sonar and selective fish ID help you find your next catch
• XNT 9 20 T transducer allows you to see up to 1,200 ft. below the surface
• Waterproof construction provides protection from the elements
• Temperature display
• Tilt and swivel Quick Disconnect mounting system offer easy attachment to a gimbal

User Manual:

Click here for User Manual

Manufacturer Warranty (general):

1 year limited

Frequency (khz):

200/83

Rms Transmit Power (w):

500

Waterproof:

Yes

Color Display:

Yes

Cone Angle (degrees):

20/60

Product Depth (in.):

4.5

Display Size (in.):

5

Fish Symbol Id:

Yes

Peak-to-peak Transmit Power (w):

4,000

Display Pixel Resolution:

640 x 640

Product Weight:

3.35 lb.

Maximum Depth (ft.):

1,200

Manufacturer Warranty - General:

1 year limited

Product Width (in.):

6.9

Portable:

No

Water Temperature Gauge:

Yes

Product Height (in.):

7.5

• Humminbird 596c HD Fishfinder
• Mounting hardware
• Owner's manual
