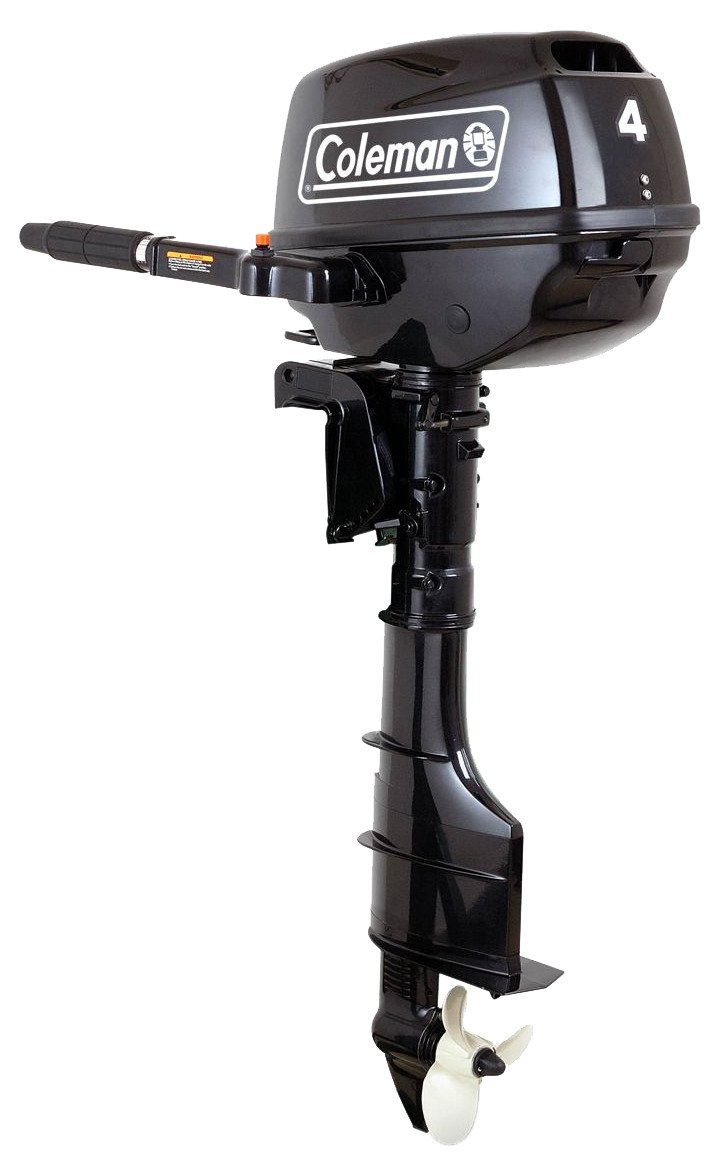

Coleman® 4 HP 4-Stroke OHV Outboard Motor

Designed for aluminum and inflatable boats 8' - 14', canoes and as a kicker for large boats, the Coleman® 4 HP 4-Stroke OHV Outboard Motor is a lightweight, compact, quiet and efficient 4-stroke motor made from a heavy-duty marine aluminum alloy for durability. A tiller handle with twist-grip throttle control offers easy steering and shifting, and start-in-gear protection promotes safe operation. 15" short shaft.

Features and Benefits

• For aluminum and inflatable boats 8' - 14', canoes and as a kicker for large boats
• 4-stroke design offers fuel efficiency with no oil mixing
• Tiller handle steering
• 15" short shaft
• Lockdown mount is removable
• Oil level gauge indicator
• High-grade marine aluminum alloy construction
• TCI ignition system
• Thermostat-controlled water cooling system
• 1.3-liter integral fuel tank with external connections
• Start-in-gear protection
• Twist-grip throttle control for easy shifting
• Ultralow emissions

Manufacturer Warranty (general):

1 year limited

Manufacturer Warranty (parts):

1 year limited

Manufacturer Warranty (labor):

1 year limited

Compression Ratio:

8.4:1

Assembly Required Flag:

Yes

Manufacturer Warranty - General:

1 year limited

Lubrication:

Splash

Number Of Cylinders:

1

Cooling System:

Water cooled

Gear Ratio:

2.08:1

Trim Positions:

8

Trim Range (degrees):

54 (4 to 54)

Drive Type:

Tiller handle

Fuel Type:

Unleaded gasoline (87 octane)

Manufacturer Warranty - Parts:

1 year limited

Manufacturer Warranty - Labor:

1 year limited

Engine Type:

4 HP, 4-stroke OHV

Horsepower:

4

Rpm Range:

4,000 - 5,000

Tilt Range (degrees):

80 (-4 to 76)

Starting System:

Manual

Gear Shift:

Forward, neutral, reverse

Engine Displacement:

112 cc

Bore X Stroke (in.):

2.323 x 1.614

Shaft Length (in.):

15

Saltwater Rated:

Yes

Product Weight (lb.):

54

Recommended Transom Height (in.):

15

• Coleman® 4 HP 4-Stroke OHV Outboard Motor
• Owner's manual
• Tool kit
