Garmin Garmin echo™ 501c Fishfinder The Garmin echo™ 501c Fishfinder features HD-ID™ sonar technology and a dual-beam transducer. Fishfinders 027321496
In stock! Order now!

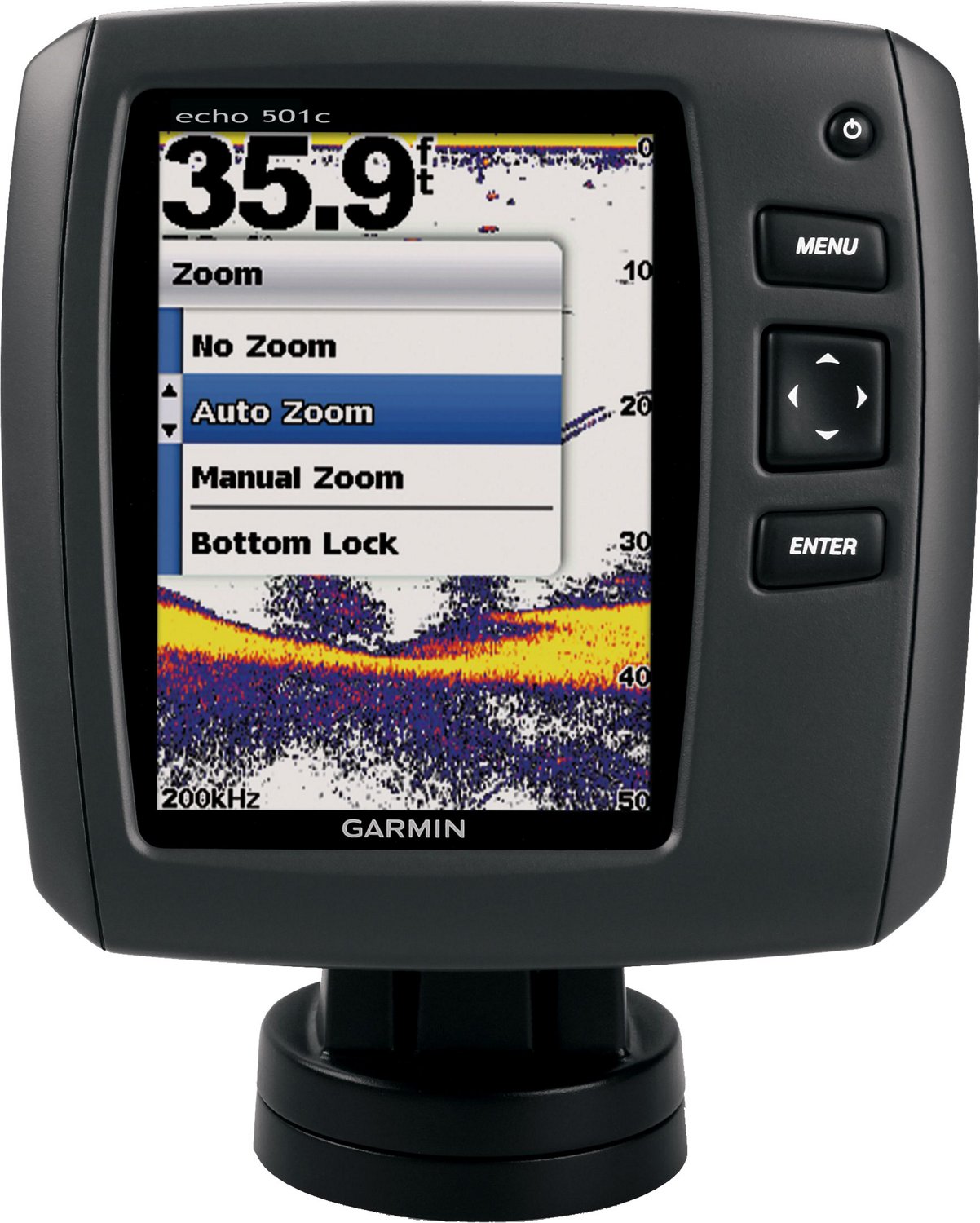

Garmin echo™ 501c Fishfinder

$199.99
Item #:
010-01261-00
SKU #:
027321496
  • Free Shipping on Footwear and Orders over $39

Find the fish with the Garmin echo™ 501c Fishfinder, which has a 5", QGVA color display that features 320 x 234 pixel resolution with HD-ID™ tracking technology and Smooth Scaling™ graphics for easy-to-read detail. AutoGain helps minimize clutter and maximize targets, Ultrascroll® displays fish targets at high boat speeds and A-scope provides real-time displays of fish passing through the transducer beam. Dual-beam transducer. IPX7 water-resistance rating. Includes quick-release tilt/swivel, transom and trolling motor transducer mounting kits.

Features and Benefits

  • - 5", QGVA color display features 320 x 234 pixel resolution with HD-ID™ sonar technology and Smooth Scaling™ graphics for easy-to-read details
  • - Split-screen zoom
  • - White line indicates hard or soft bottom
  • - Fish symbol ID helps to identify fish targets
  • - Dual-beam transducer with Sonar History Rewind
  • - AutoGain helps minimize clutter and maximize targets
  • - Ultrascroll® displays fish targets at high boat speeds
  • - A-scope provides real-time displays of fish passing through the transducer beam
  • - Adjustable depth line measures the depths of underwater objects
  • - Bottom lock shows return from the bottom up
  • - Water temperature sensor with a water temperature log and graph
  • - Water-speed capable to display your speed on the water
  • - Audible alarms
  • - Includes quick-release tilt/swivel, transom and trolling motor transducer mounting kits
  • - IPX7 water-resistance rating

What's in the Box

  • - Garmin echo™ 501c Fishfinder
  • - Dual-beam transducer
  • - Transom and trolling motor mounting kit
  • - Quick-release tilt/swivel mounting kit
  • - Power cable
  • - Owner's manual

Documents & Downloads

Manufacturer Warranty (general):
2 years limited
Adjustable Depth Line:
Yes
Portable:
No
Product Height (in.):
6
Color Display:
Yes
Product Width (in.):
5.9
Frequency (khz):
50/77/200
Display Pixel Resolution:
320 x 234
Waterproof:
Yes
Manufacturer Warranty - General:
2 years limited
Product Depth (in.):
1.8
Water Temperature Gauge:
Yes
Maximum Depth (ft.):
2,300
Product Weight:
17.6 oz.
Cone Angle (degrees):
60/120
Display Size (in.):
5
Peak-to-peak Transmit Power (w):
4,000
Fish Symbol Id:
Yes
Rms Transmit Power (w):
500
